UL21288 Flame Retardant Power Cable Supplier
Product Specifications
| Attribute |
Value |
| Sheath Material |
Frpe |
| Insulation Material |
PP or PE |
| Material Shape |
Round Wire |
| Range of Application |
Industrial Control |
| Brand |
Hwatek |
| Color |
Optional |
| Qty/Roll |
305m,610m or as Request |
| Transport Package |
Rolled in Reels, Packed in Pallets |
| Trademark |
Hwatek |
| Origin |
China |
| HS Code |
8544492100 |
Products are used in communication equipment, instruments, industrial control systems, electronic and electrical equipment.
Key Features
- Application: External interconnection of electronic equipment
- Application standard: UL758 & UL1581 & CSA C22.2 No.210
- Excellent insulation performance
- Stable chemical properties
- Heat resistance and anti-acid
- Environmentally friendly
- Passes UL VW-1 and CSA FT1 vertical flame test
- Thin insulation thickness
- Halogen free
- High-voltage resistance

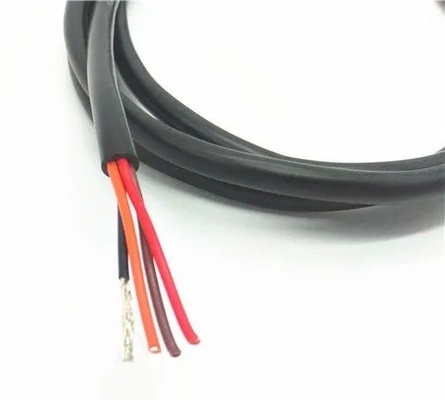

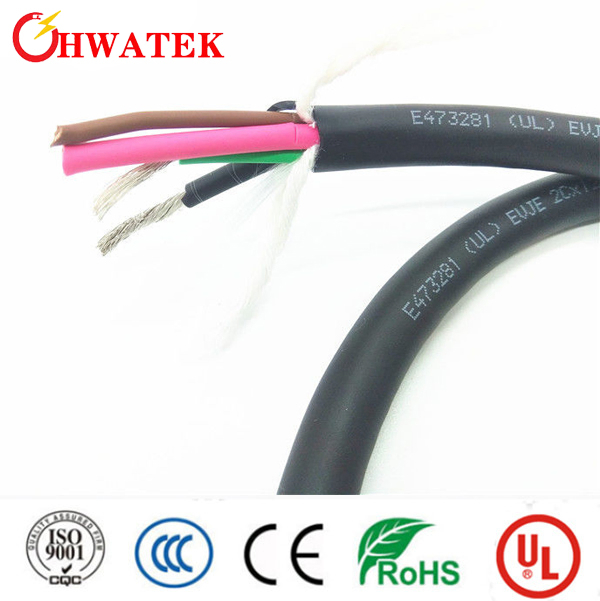

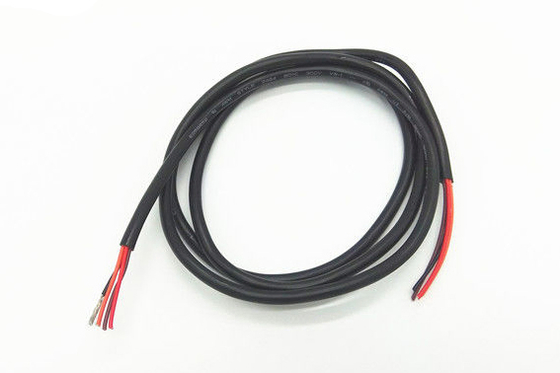

Construction
- Tinned or bare copper, stranded or solid conductor (30-4/0AWG)
- PE or PP insulation
- Two or more single-core wires twisted into pair or cabling
- Available in round, flat, or oval-shaped cable
- Tinned or bare copper wire, spiral or braid shield or Al-mylar wrapped shield
- FRPE or PVC inner jacket
- FRPE jacket
Technical Parameters
- Rated temperature: 80ºC
- Rated Voltage: 1000V
Product Specifications Table
| Product Number |
Conductor |
Insulation |
Braid Shield |
Jacket |
Max. Cond. Resistance (200C) Ω/km |
| HT21288***003 |
8C
28 AWG
7/0.127
0.38mm |
0.20mm
0.78mm |
16/6/0.12
0.80mm
4.95mm |
223 |
| HT21288***005 |
6C
26 AWG
7/0.16
0.48mm |
0.20mm
0.88mm |
16/6/0.12
0.80mm
4.80mm |
140 |
| HT21288***007 |
4C
22 AWG
17/0.16
0.76mm |
0.20mm
1.16mm |
16/6/0.12
0.80mm
4.60mm |
55.4 |
| HT21288***008 |
2C
18 AWG
41/0.16
1.18mm |
0.25mm
1.68mm |
16/7/0.12
0.80mm
5.60mm |
21.8 |
Remark: Optional core wire number 2C-50C, and shielding way
Company Profile
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Frequently Asked Questions
Q: What can you supply?
A: We produce consumer electronics wires, hook up wires, industrial cables, robot cables, EV charging cables, new/green energy cables.
Q: What certificates do you have?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
Q: Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
Q: What's your lead time?
A: Normally we can finish orders in 2-3 weeks, and 5-6 weeks in peak season.
Q: How do you guarantee product quality?
A: We provide pre-production samples before mass production and conduct final inspection before shipment.
Major Customers
We serve global clients across various industries with our high-quality cable solutions.
