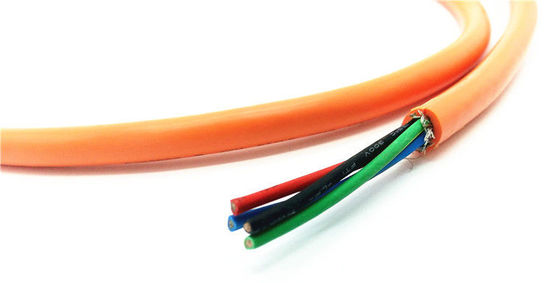

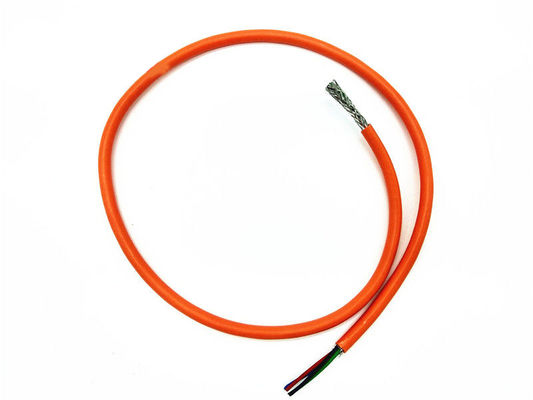

450/750V AC and DC Multicore HV EV Power Charging Cable Wire
Certification
General Administration of Quality Supervision, Inspection and Quarantine
| Certificate No. |
Product Types |
| CQC16011142377 |
EV-(R)SS, EV-(R)SSPS, EV-(R)S90S90, EV-(R)S90S90PS90, EV-(R)S90U, EV-(R)S90S90PU-450/750V |
Structure Diagram
Reference Standard
GB/T 33594-2017
Product Category
AC: EV-(R)S90U EV-(R)S90S90PU-450/750V 1.0-70(2-5Cores)+0.5-0.75(P/P2)(1-10Cores)
Construction
- Rated temperature: -40 ~ +90°C
- Rated voltage: AC450/750V
- Conductor: Stranded bare or tinned copper
- Insulation material: TPE
- Sheath material: TPU
Features
- Flexible construction
- Resistant to cold, oil (11 types), ozone, abrasion, UV
- Resistant to external pressure and thermal stress
- IEC60332-1 flammability test compliant
- Minimum bending radius 5xOD
- Easy installation
Applications
Suitable for all types of electric vehicles, charging piles, power stations, and charging stations.
Structural Parameter Table
| Category |
Wire Specifications |
Reference Current (A) |
Diameter Unshielded (mm) |
| EV-(R)SS, EV-(R)SSPS, EV-(R)S90S90, EV-(R)S90S90PS90, EV-(R)S90U, EV-(R)S90S90PU-450/750V |
3×2.5+2×0.75 |
18 |
12.7 | 11.1 |
| 3×4+2×0.75 |
25 |
14.4 | 12.8 |
| 3×6+2×0.75 |
34 |
16.3 | 14.5 |
| 5×2.5+2×0.75 |
18 |
15.3 | 13.7 |
| 5×4+2×0.75 |
25 |
17.8 | 16.0 |
| 5×6+2×0.75 |
34 |
19.8 | 17.8 |
| 5×10+2×0.75 |
50 |
22.9 | 20.7 |
| 5×16+2×0.75 |
67 |
27.5 | 25.1 |
Notes
- The detailed dimensions are subject to the product specifications.
- Other specifications can be designed and manufactured according to customer requirements.
- The color of the sheath is generally black or orange. Custom colors available upon request.

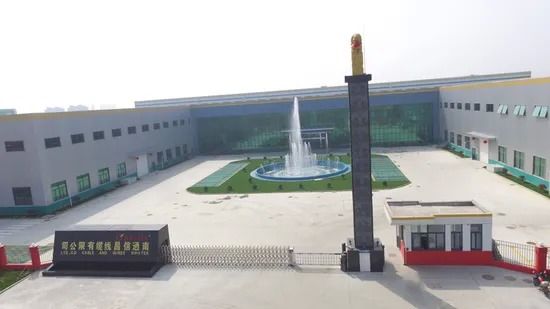

Company Profile
